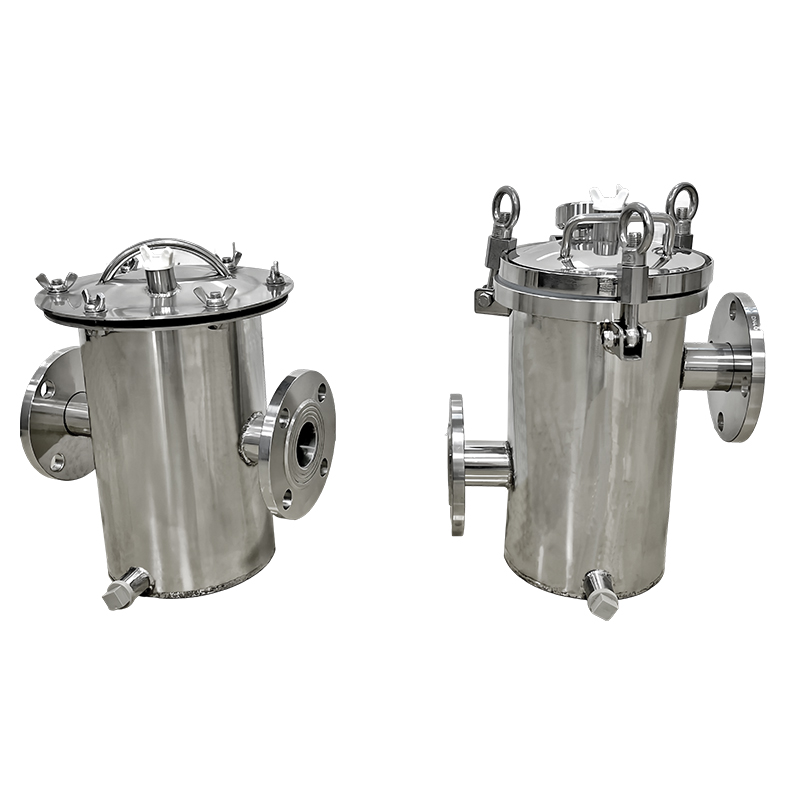

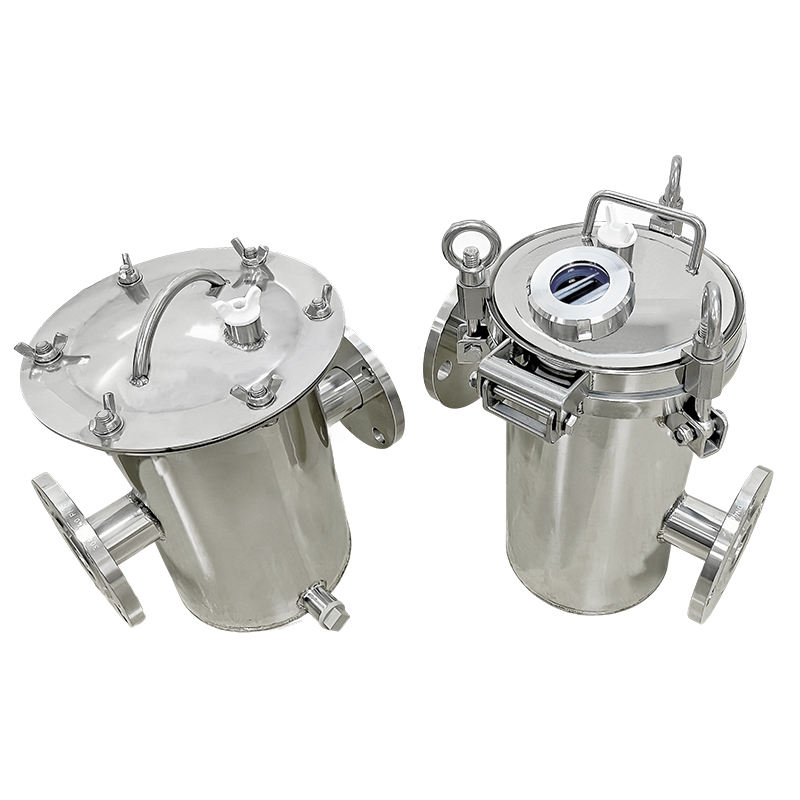

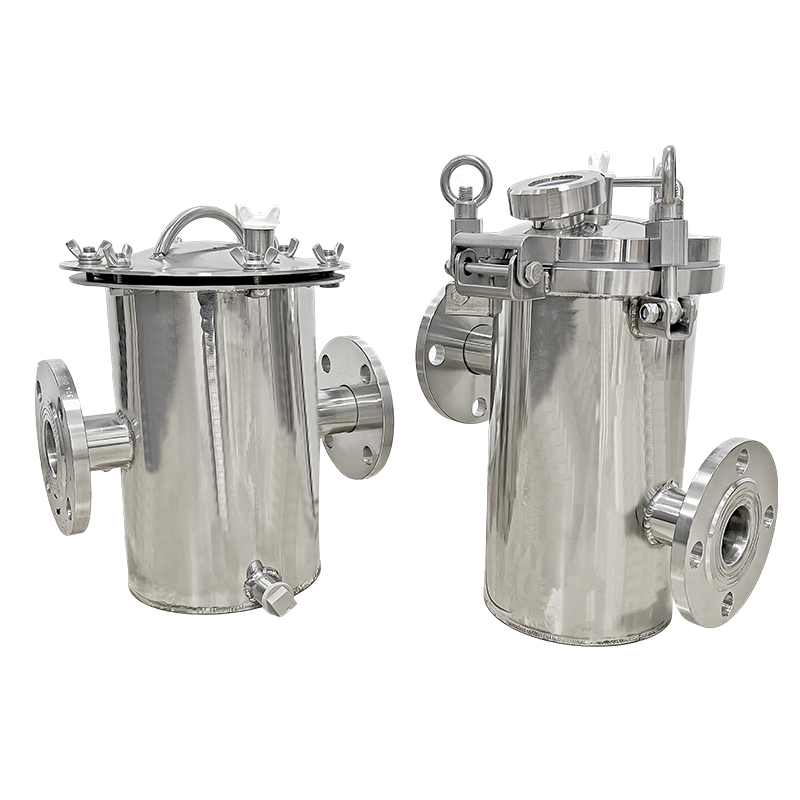

Ordinary Hair Collector

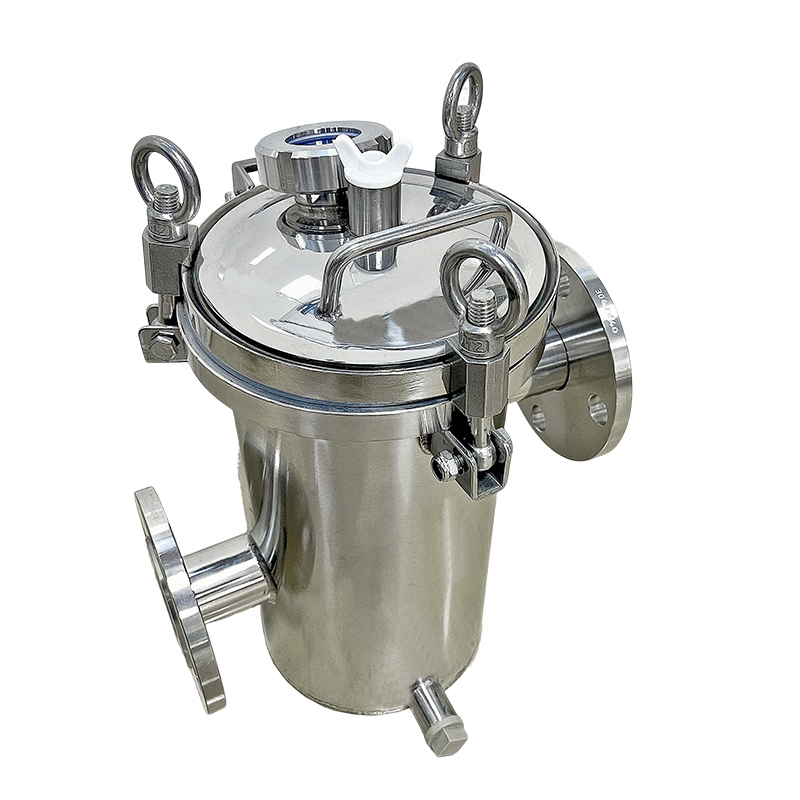

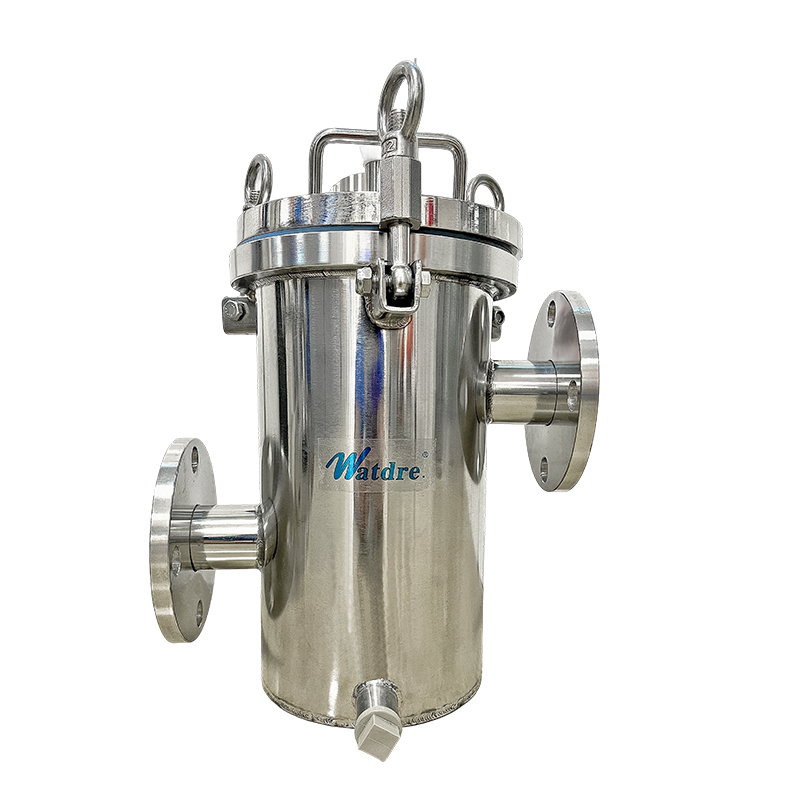

Quick-open hair collector model:

YV-40

YV-50

YV-65

YV-80

YV-100

YV-150

YV-200

YV-250

Ordinary hair collector model:

Y-40

Y-50

Y-65

Y-80

Y-100

Y-150

Y-200

Y-250

Hair collector: It is an essential equipment for circulating water treatment system. The turbid water in the swimming pool is mixed with a lot of mud, sand, stones, debris, hair, etc. It is pumped out by the water pump and first intercepted and collected by the hair collector. The effect of its filtration and throttling not only threatens the life of the water pump, but also has a great impact on the filtered water quality of the water purifier. It is mainly used to remove hair and fiber substances in the grey water treatment system and the circulating water treatment system of the swimming pool.

Consult

Features
Technical Indicators
Overall Dimension

Product features: High-quality 304 stainless steel body, stainless steel filter element, high strength and corrosion resistance, service life of more than 15 years. 2. The inlet and outlet are at the same height, with national standard flange interface, easy to install. Structural features 1. The hair collector is a steel body welded structure with an anti-corrosion coating lined inside. 2. Double-layer perforated plates are used in the collection chamber to block debris of different sizes. Cleaning method: 1. Rinse once a month and close the valve before the hair collector enters the water. 2. Loosen the upper cover screws with a wrench and remove the upper cover. 3. Take out the inclined plate filter and rinse the dirt hanging on it with water, and clean the debris in the tank at the same time 4. Install each part in turn, and open the main pipeline valve to re-activate the hair collector. 304 stainless steel quick-twist butterfly screw The top cover of the hair collector is opened with a butterfly screw. No tools are required to unscrew it, and it can be easily unscrewed by hand. At the same time, it also strengthens the connection between the cover and the bottom, making the filtering effect better. Precision filter mesh High-quality 304 stainless steel filter mesh, when placed in a filter cartridge of certain specifications, can remove water weeds and floating objects to protect the normal operation of the water pump. National standard flange interface The hair collector has a large interface between the water and the outlet, with a circular design width of 75mm. The inlet and outlet flanges can be of uniform height, ensuring the water flow rate while also having a better filtering effect.
Quick-open hair collector model
Product Model
The dimensions of the outer packaging(mm)
Volume(mm³)
YV-40
280*247*370
25589200
YV-50
280*247*370
25589200
YV-65
400*308*435
53592000
YV-80
400*308*435
53592000
YV-100
455*362*500
82355000
YV-150
492*362*600
106862400
YV-200
592*440*725
188848000
YV-250
642*488*835
261602160
Ordinary hair collector model
Product Model
The dimensions of the outer packaging(mm)
Volume(mm³)
Y-40
168*270*280
12700800
Y-50
168*270*280
12700800
Y-65
220*340*380
28424000
Y-80
220*340*380
28424000
Y-100
275*400*430
47300000
Y-150
275*400*430
47300000
Y-200
350*500*530
92750000
Y-250
450*700*630
198450000

Quick-open hair collector model
Product Model	The dimensions of the outer packaging(mm)	Volume(mm³)
YV-40	*280247370*	25589200
YV-50	*280247370*	25589200
YV-65	*400308435*	53592000
YV-80	*400308435*	53592000
YV-100	*455362500*	82355000
YV-150	*492362600*	106862400
YV-200	*592440725*	188848000
YV-250	*642488835*	261602160
Ordinary hair collector model
Product Model	The dimensions of the outer packaging(mm)	Volume(mm³)
Y-40	*168270280*	12700800
Y-50	*168270280*	12700800
Y-65	*220340380*	28424000
Y-80	*220340380*	28424000
Y-100	*275400430*	47300000
Y-150	*275400430*	47300000
Y-200	*350500530*	92750000
Y-250	*450700630*	198450000
