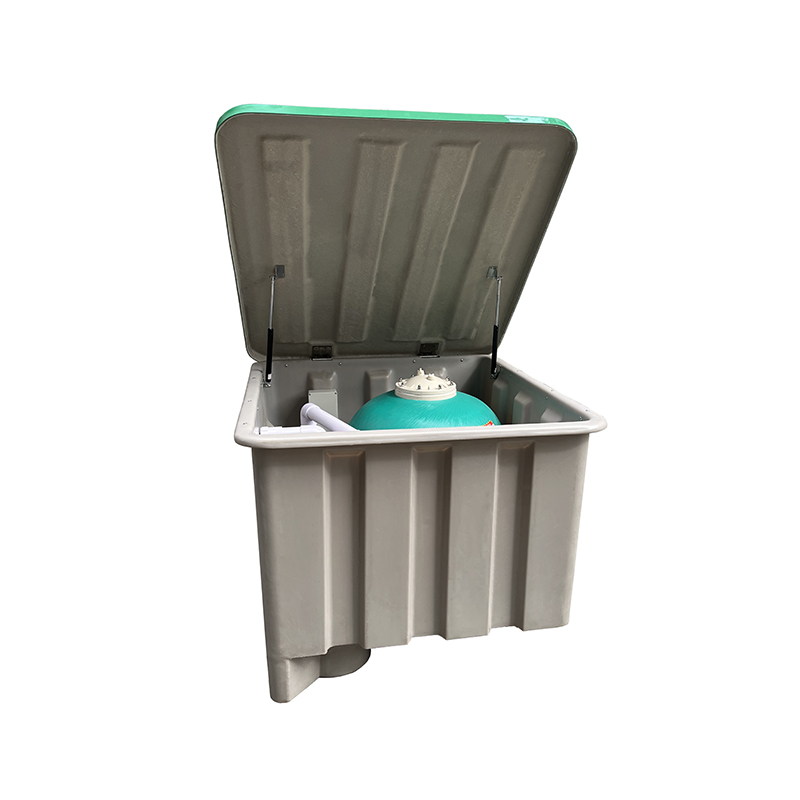

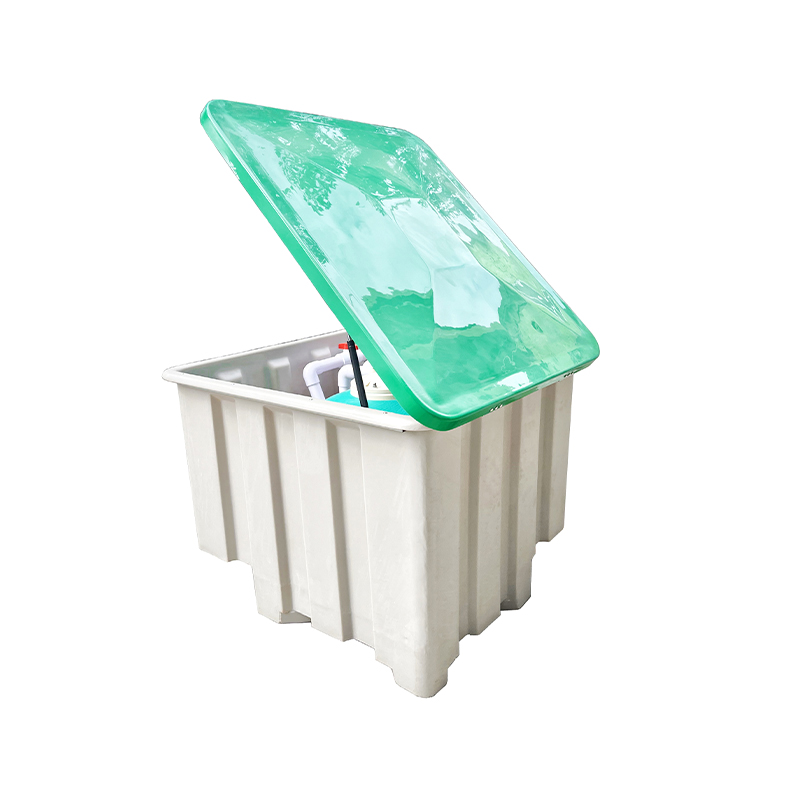

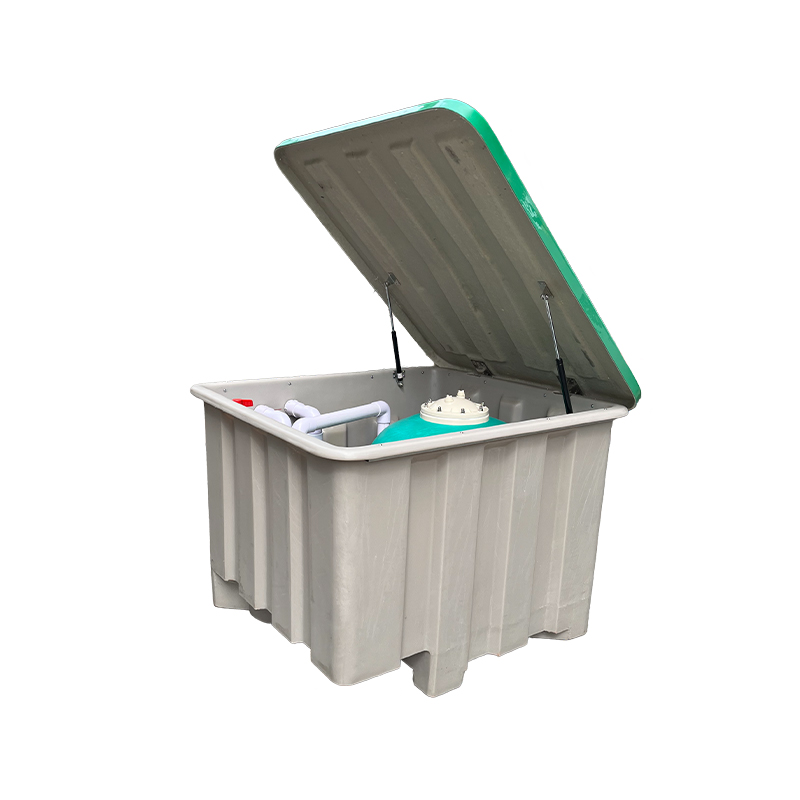

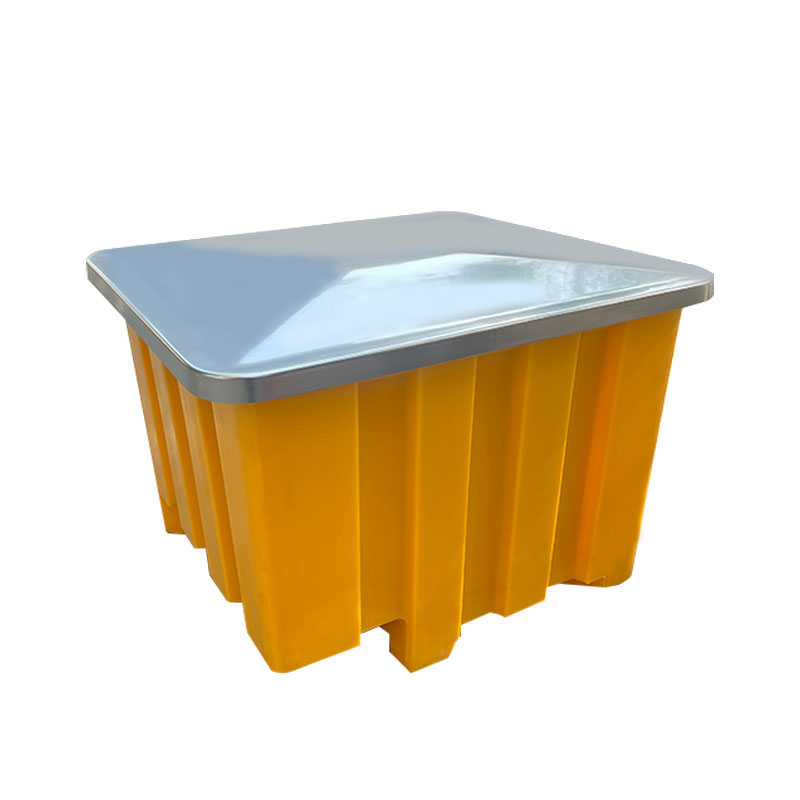

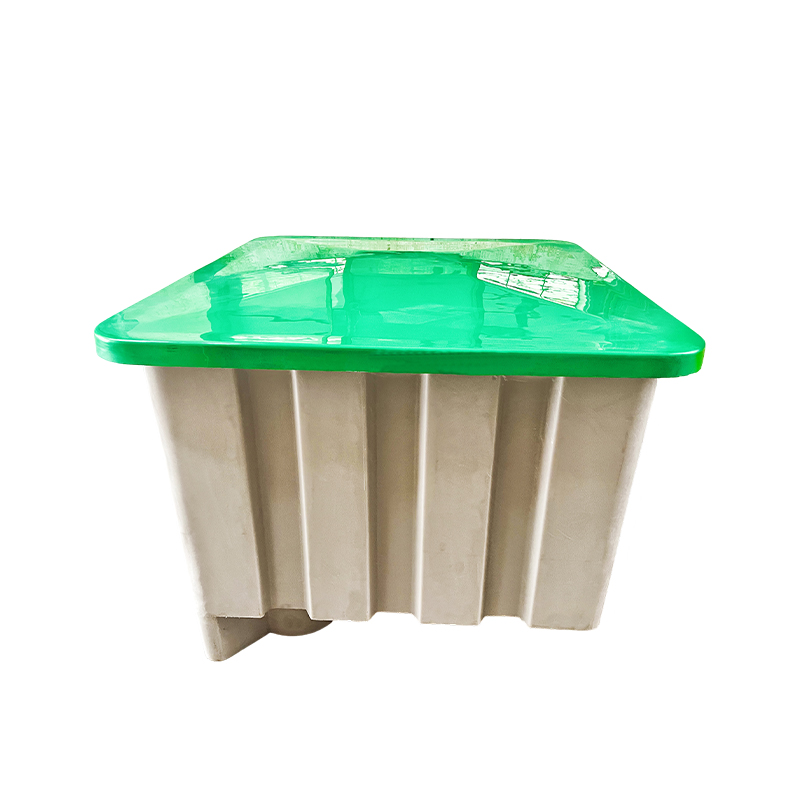

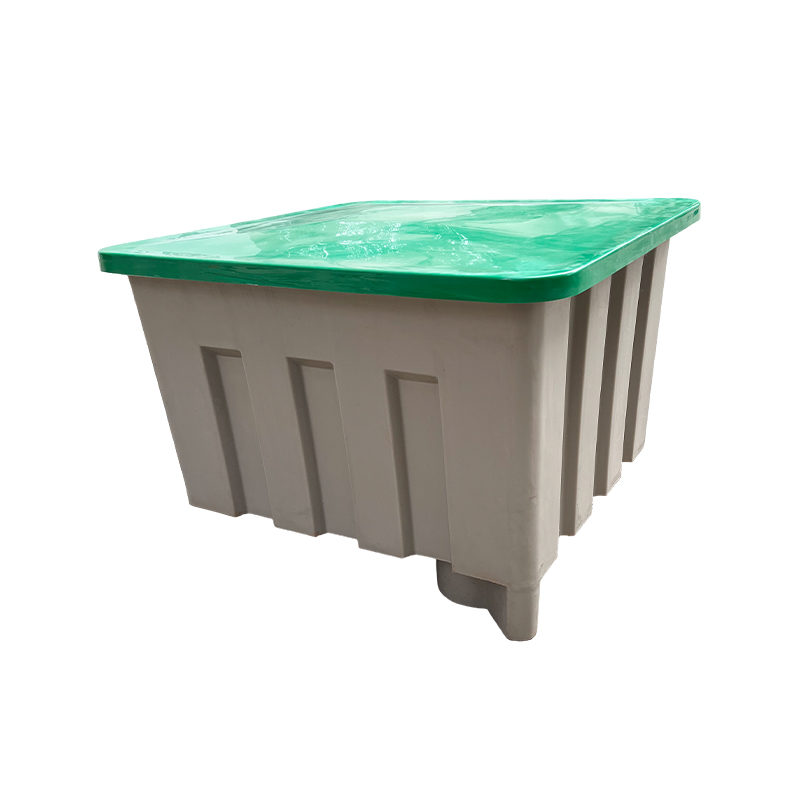

Integrated Filtration Equipment

C-18(Regular)
C-18(solenoid valve type)
C-25(Regular)
C-25(solenoid valve type)
C-25T(Regular)
C-30(Regular)
C-30(solenoid valve type)
C-36(Regular)
Selling point: An ideal companion for swimming pools, integrated underground machine, integrated filtration, no machine room required, sewage suction and disinfection, filtration cycle, safe and simple, new concept, one machine for multiple uses, and complete configuration.

Consult

Features
Technical Indicators
Overall Dimension

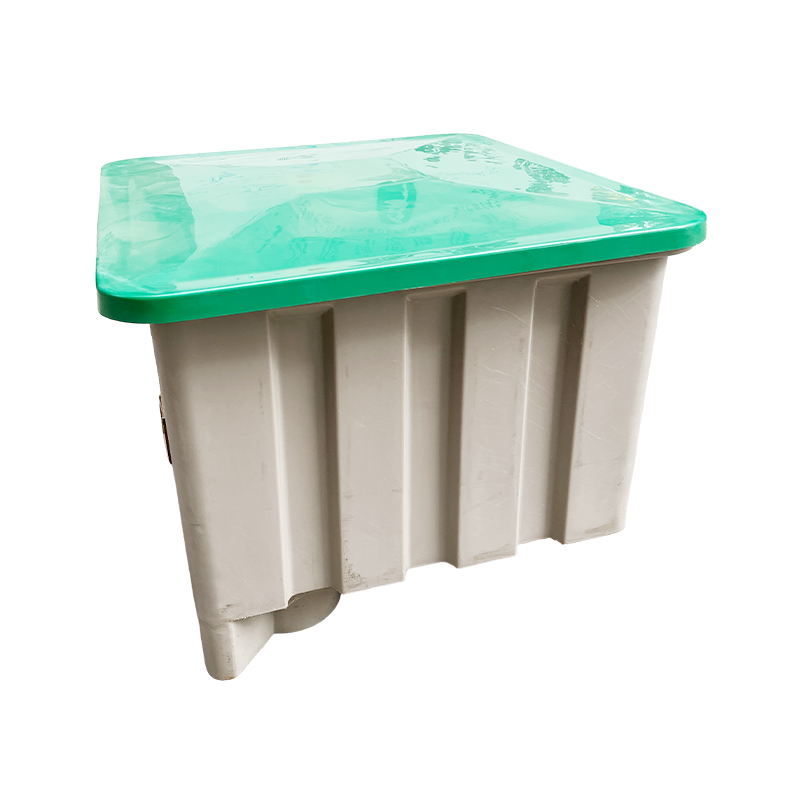

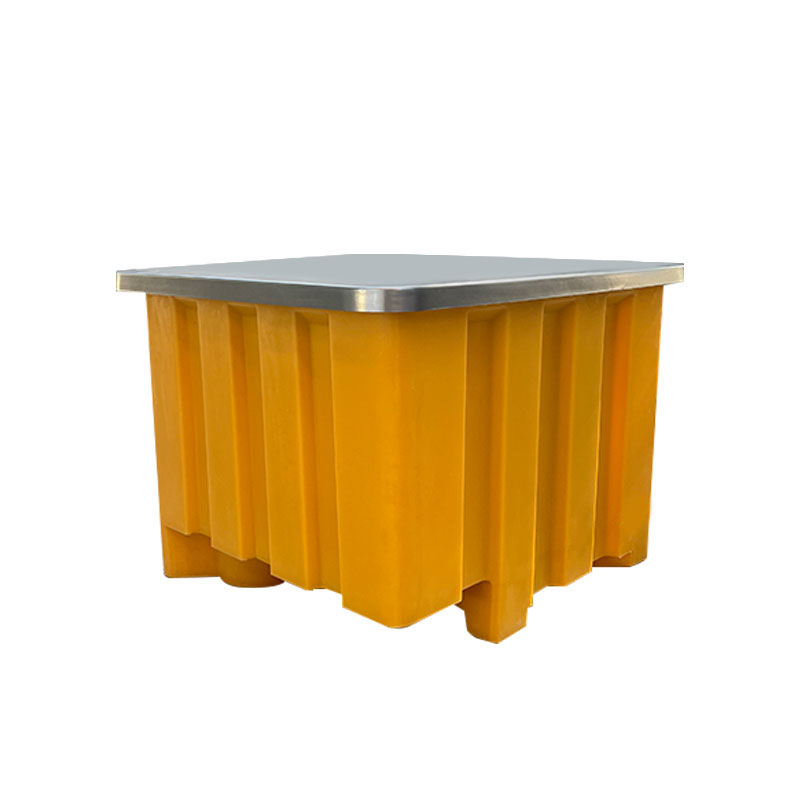

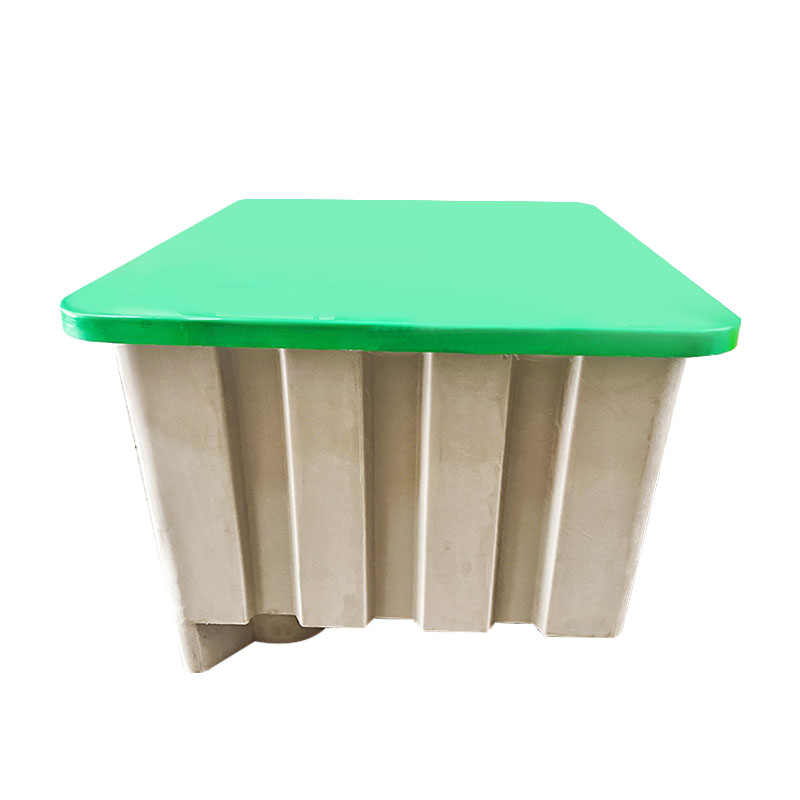

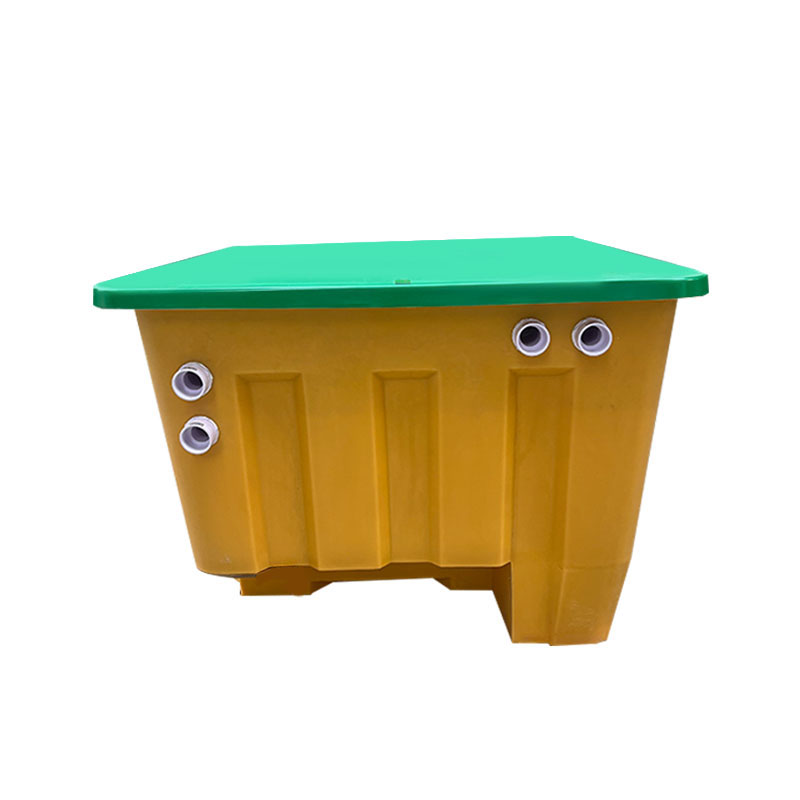

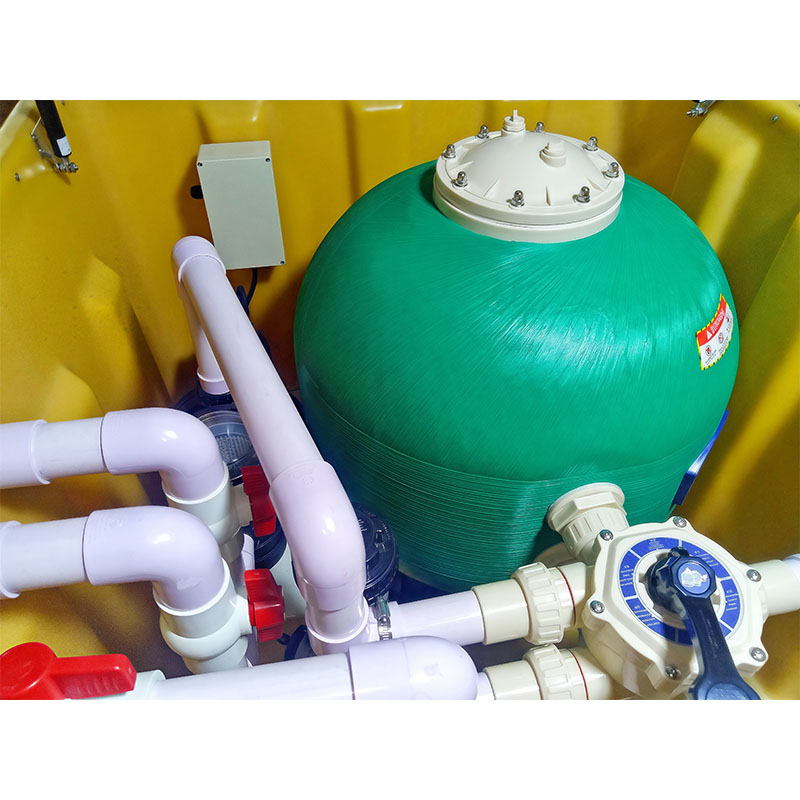

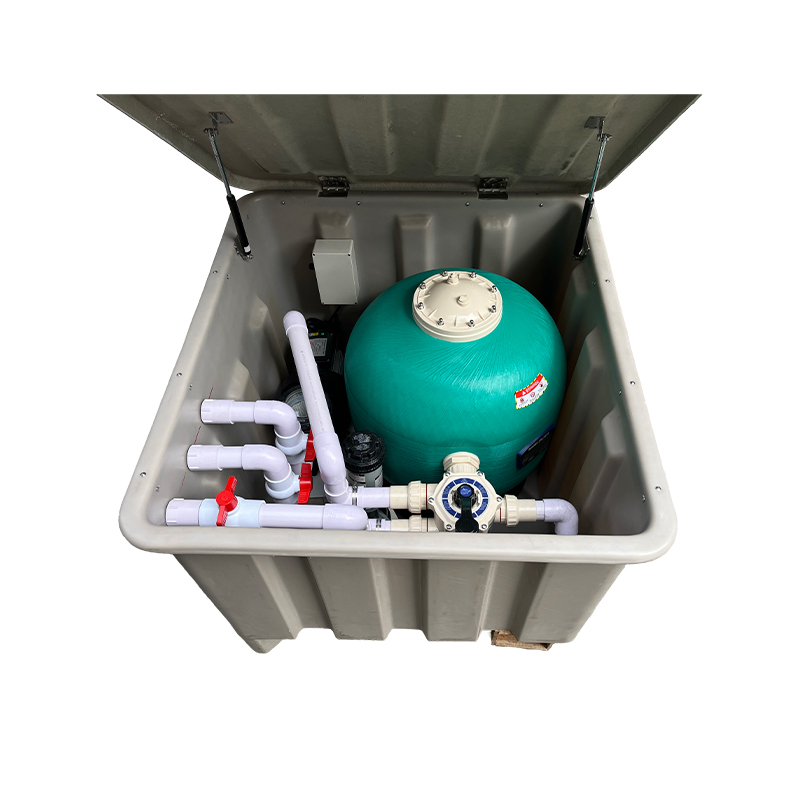

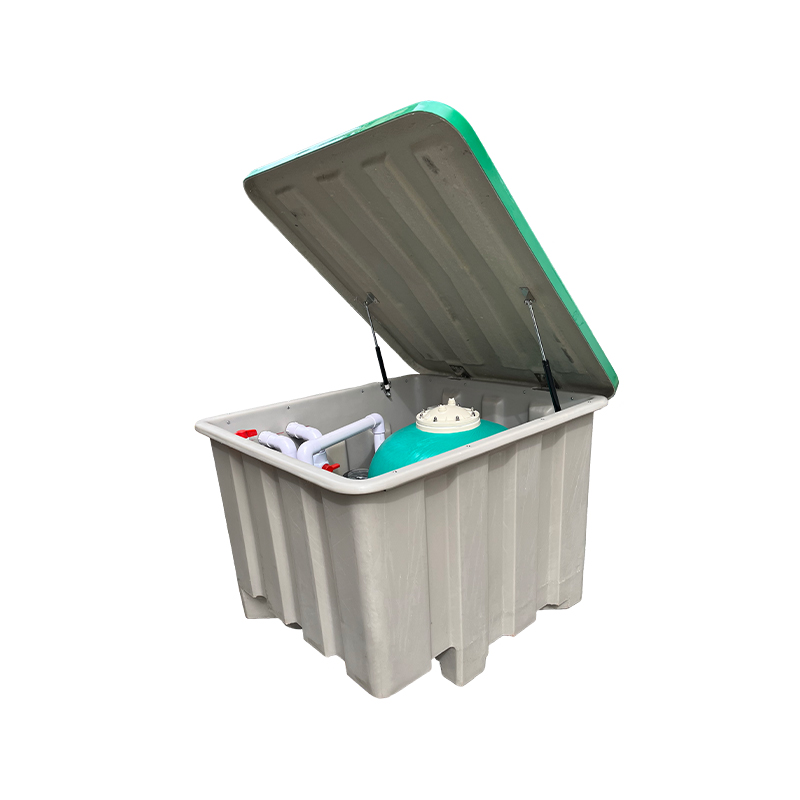

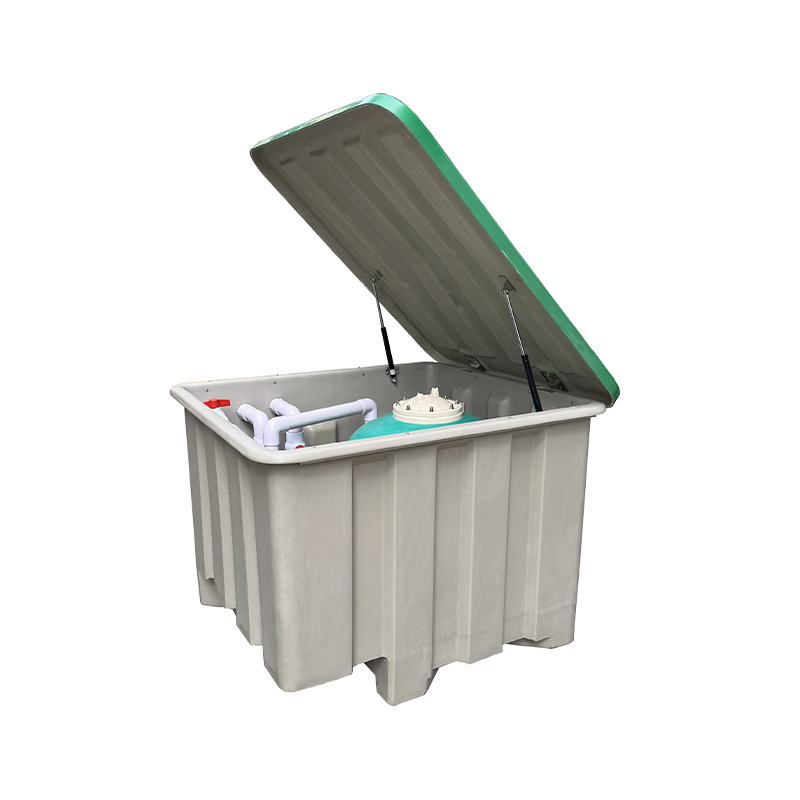

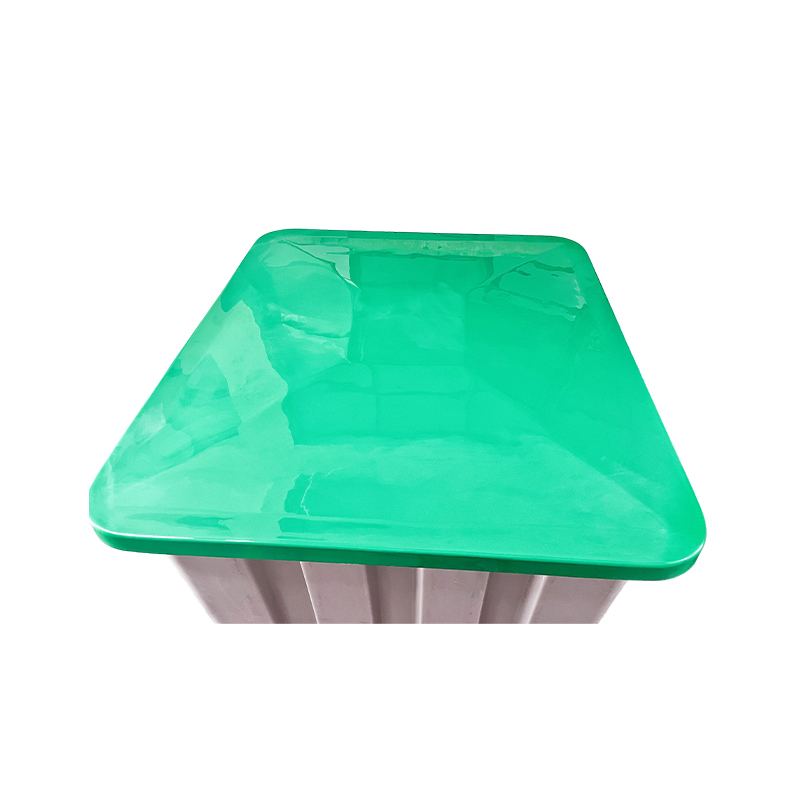

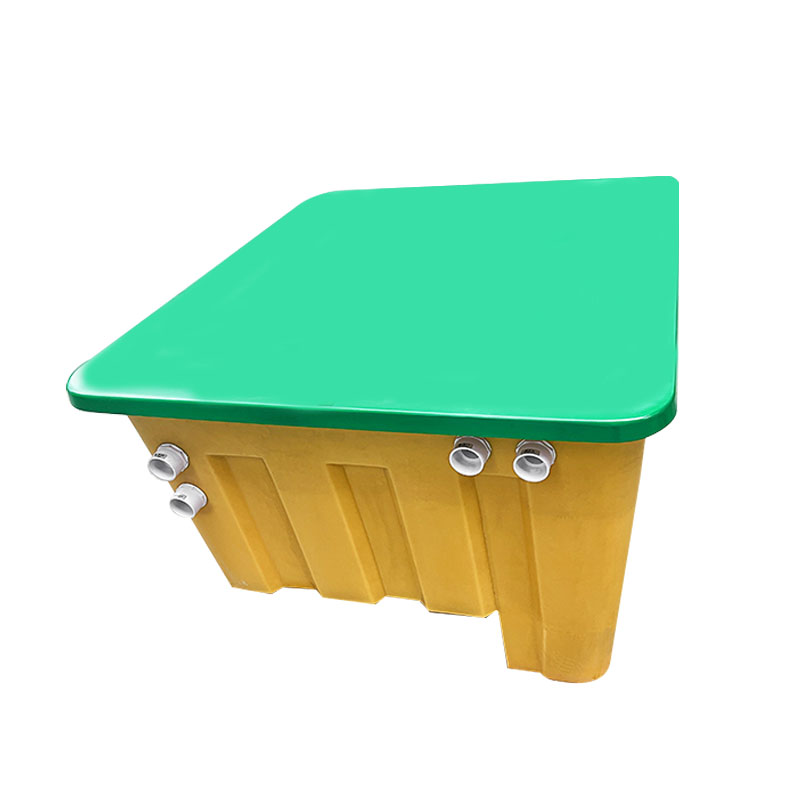

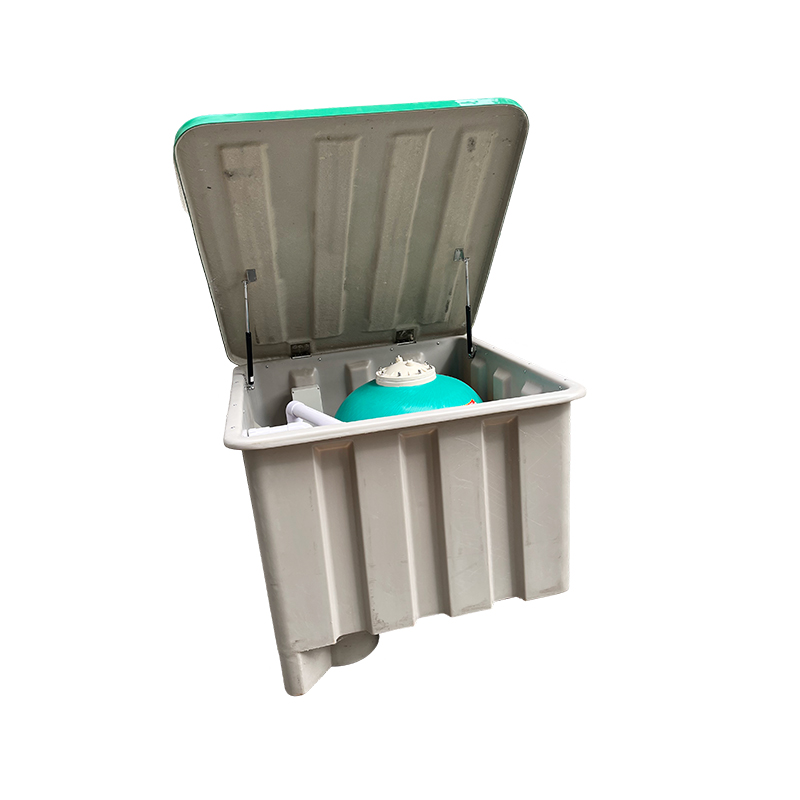

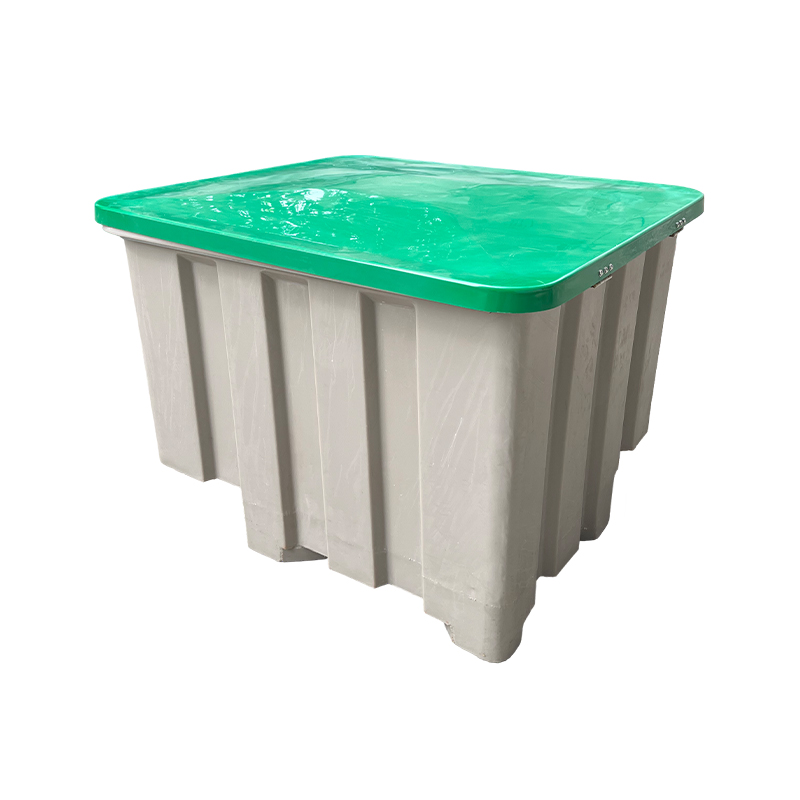

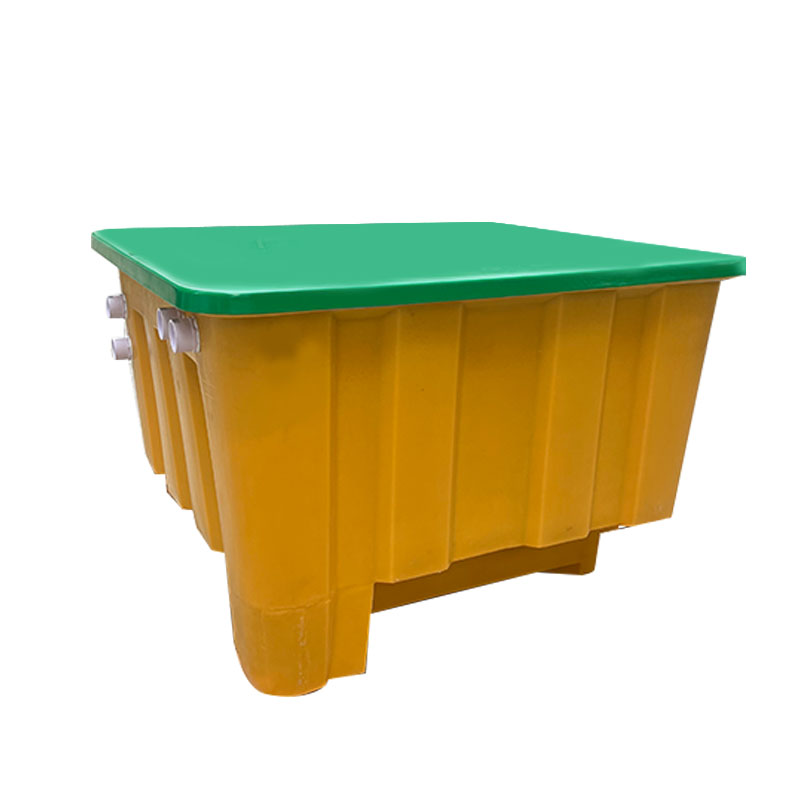

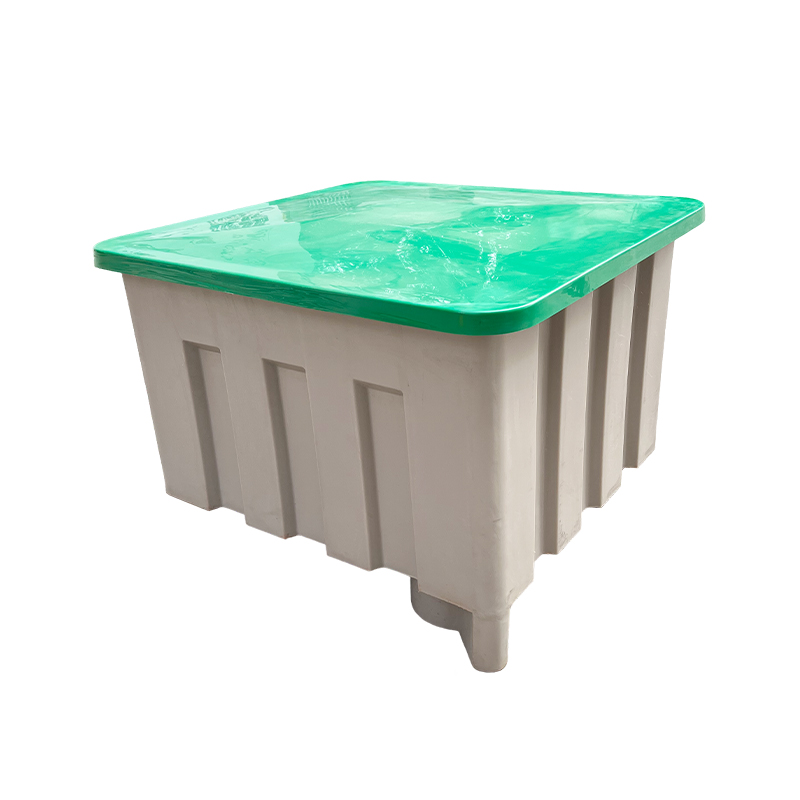

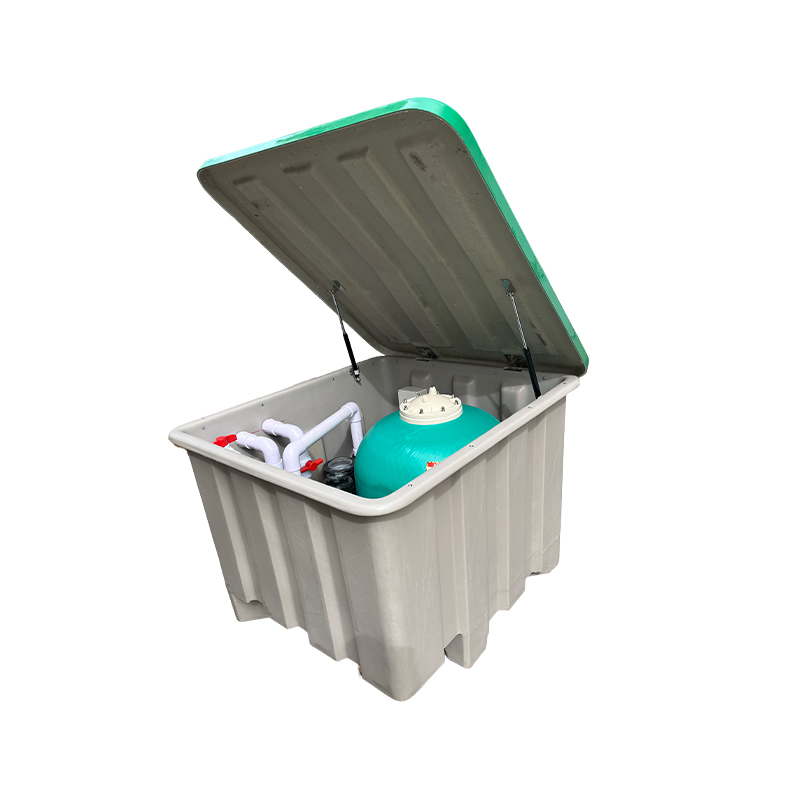

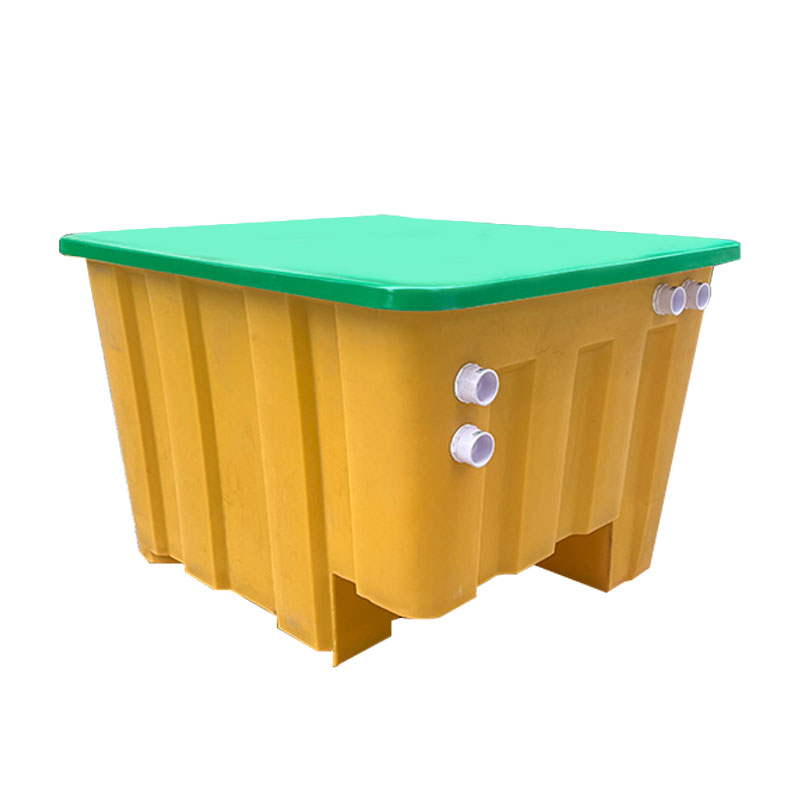

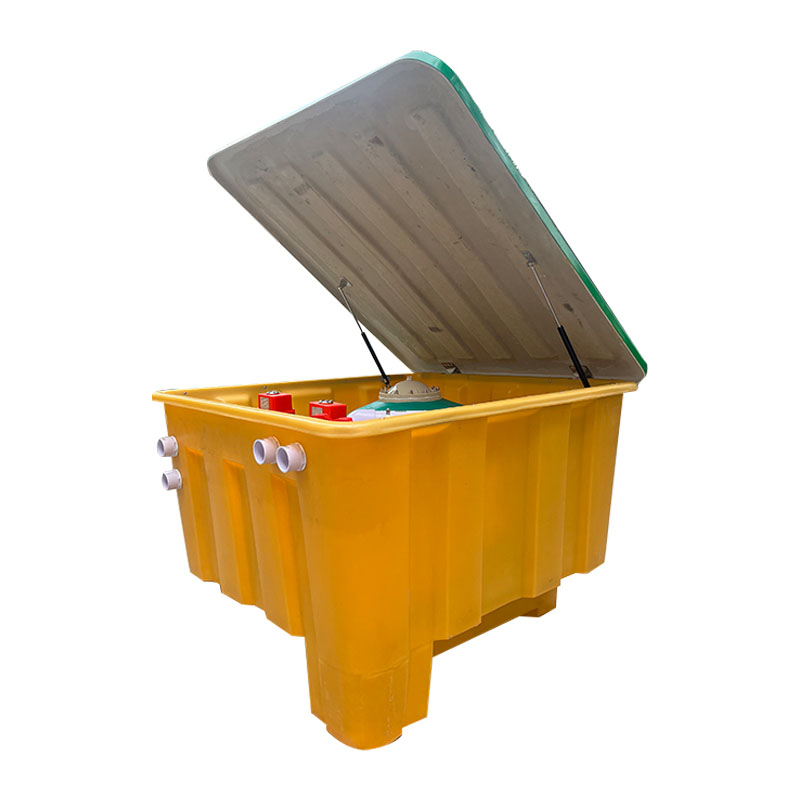

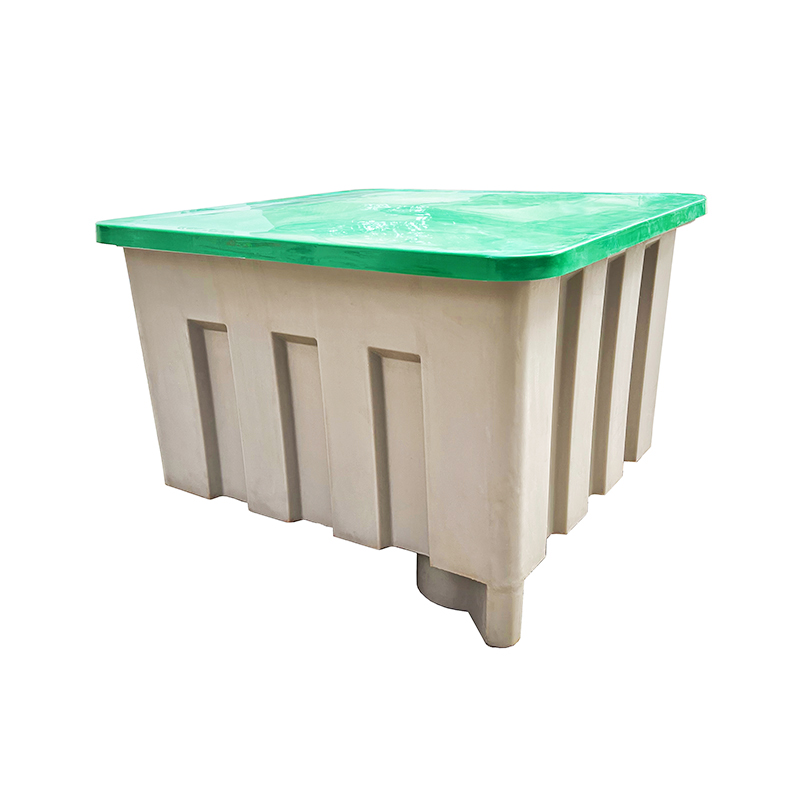

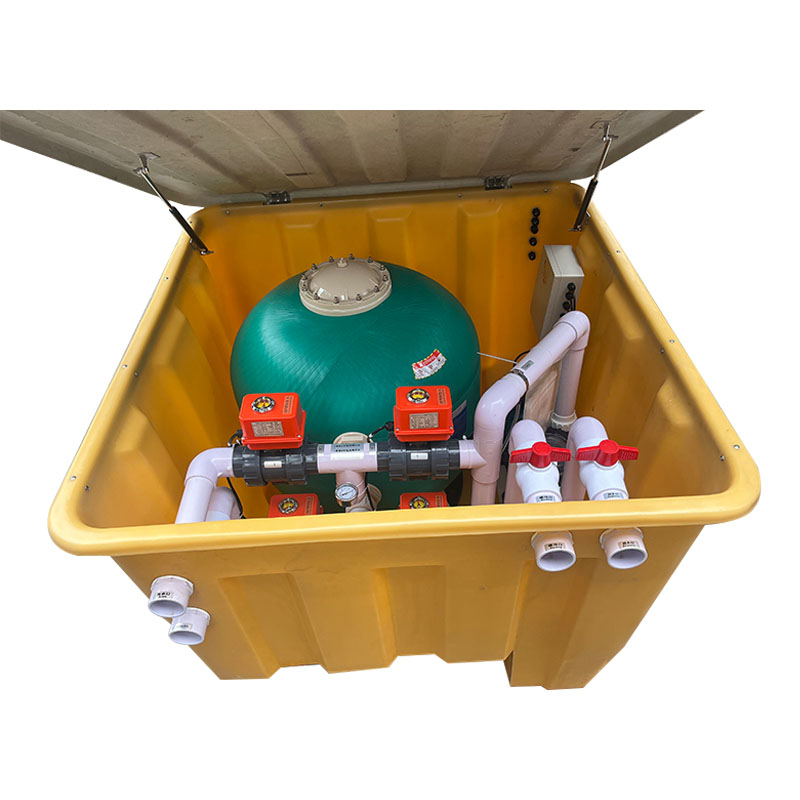

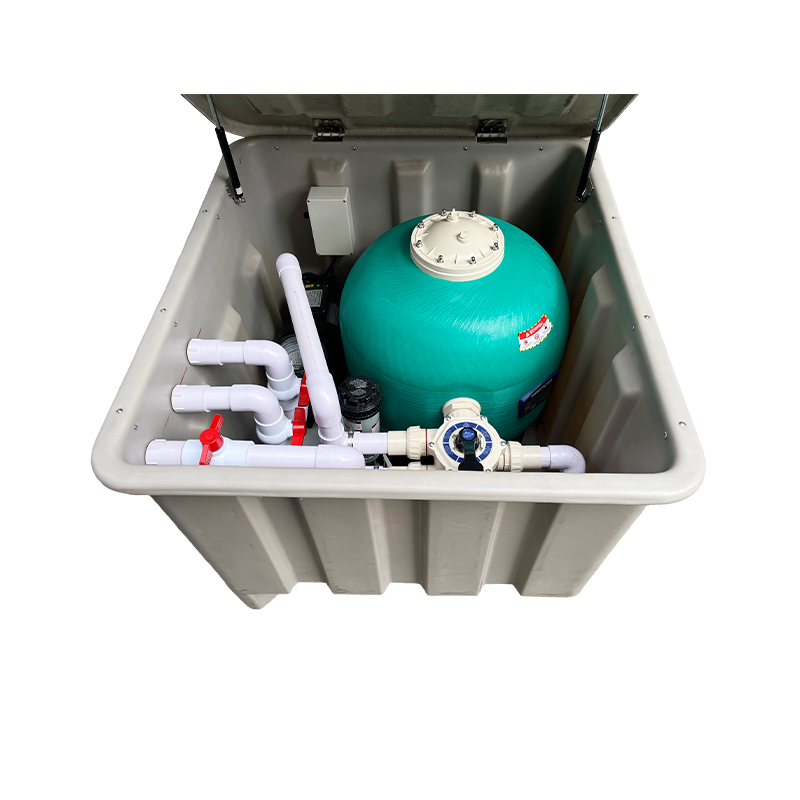

The underground integrated machine adopts an open platform, and different disinfection methods can be selected and installed according to their respective needs, such as traditional dosing devices, ultraviolet rays, salt chlorine machines, ozone machines and copper and silver ion processors. Box material: acrylic cover, imported PE material.

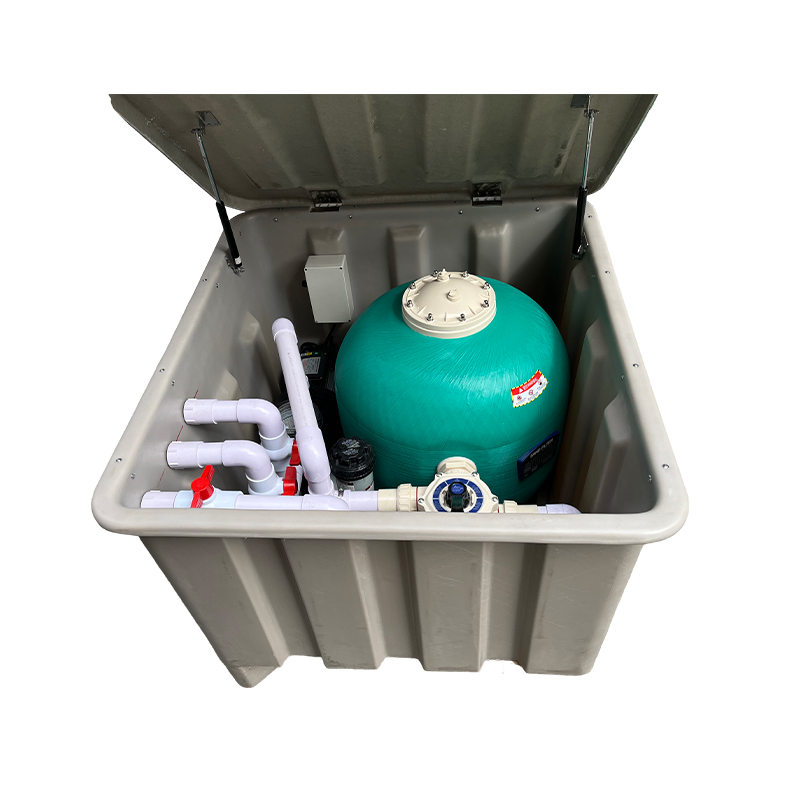

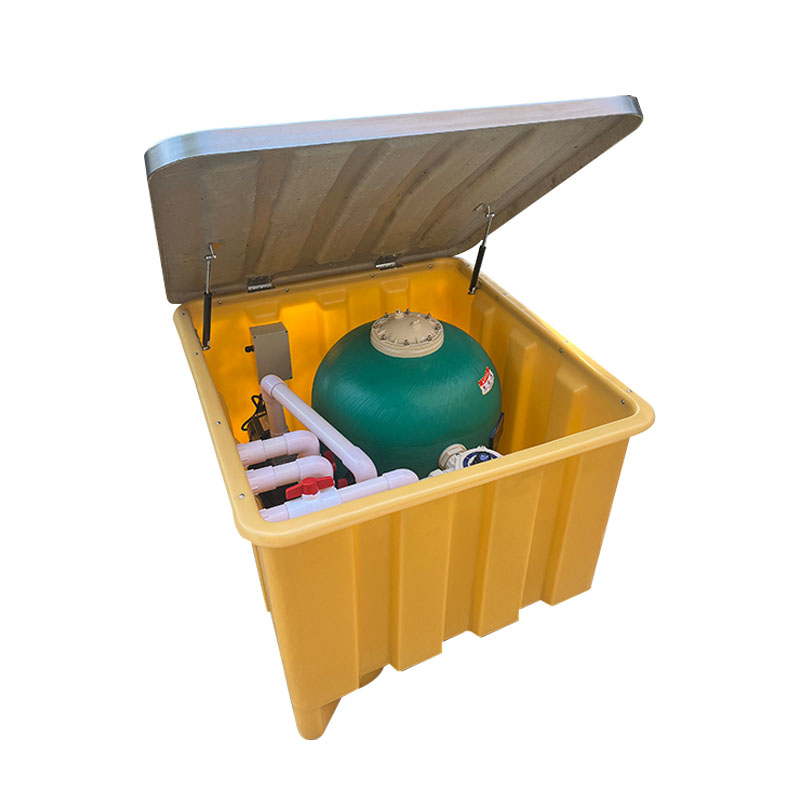

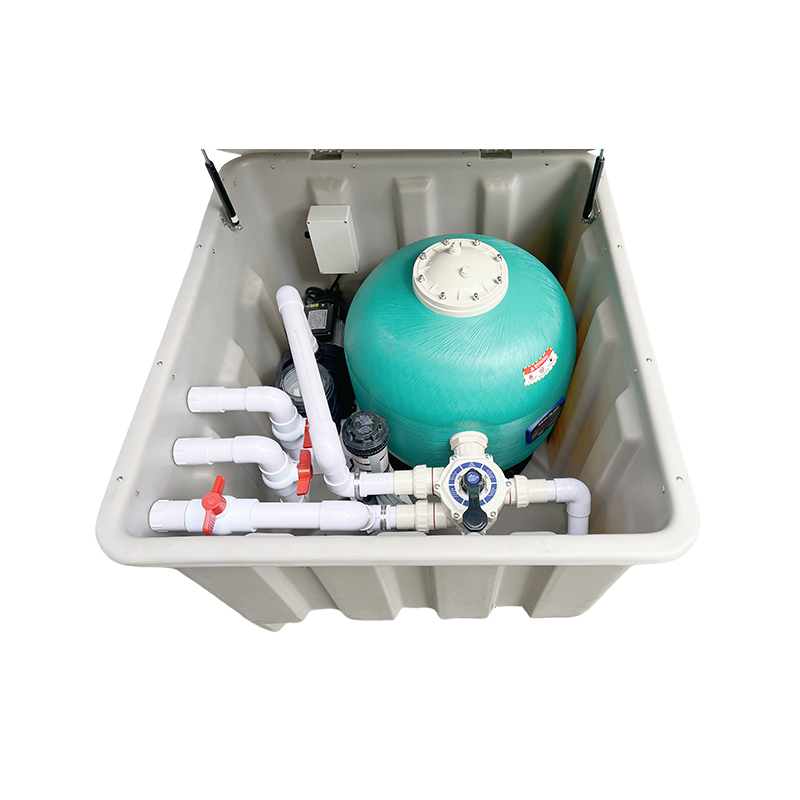

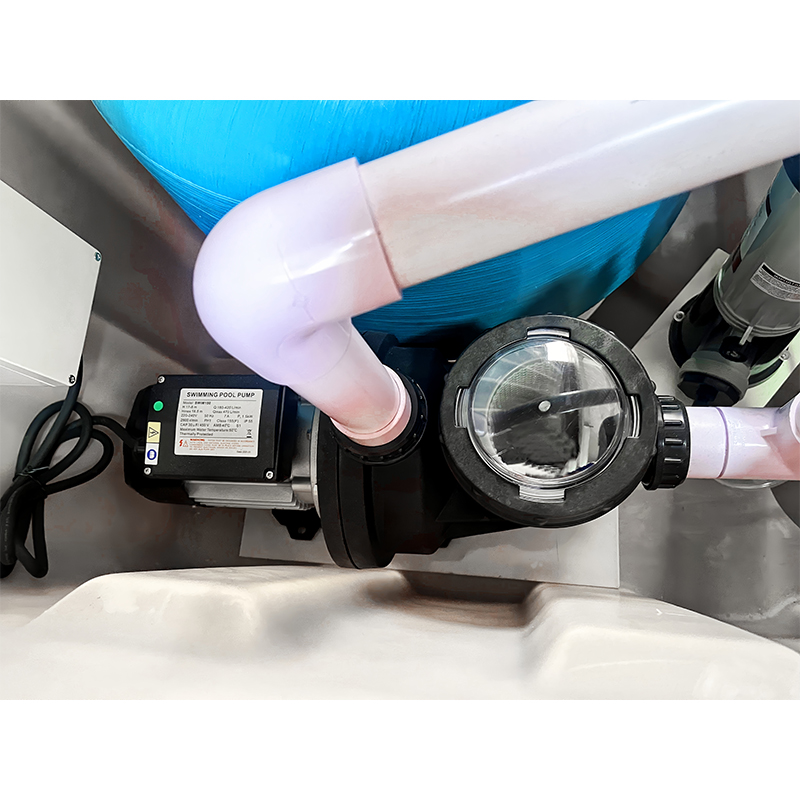

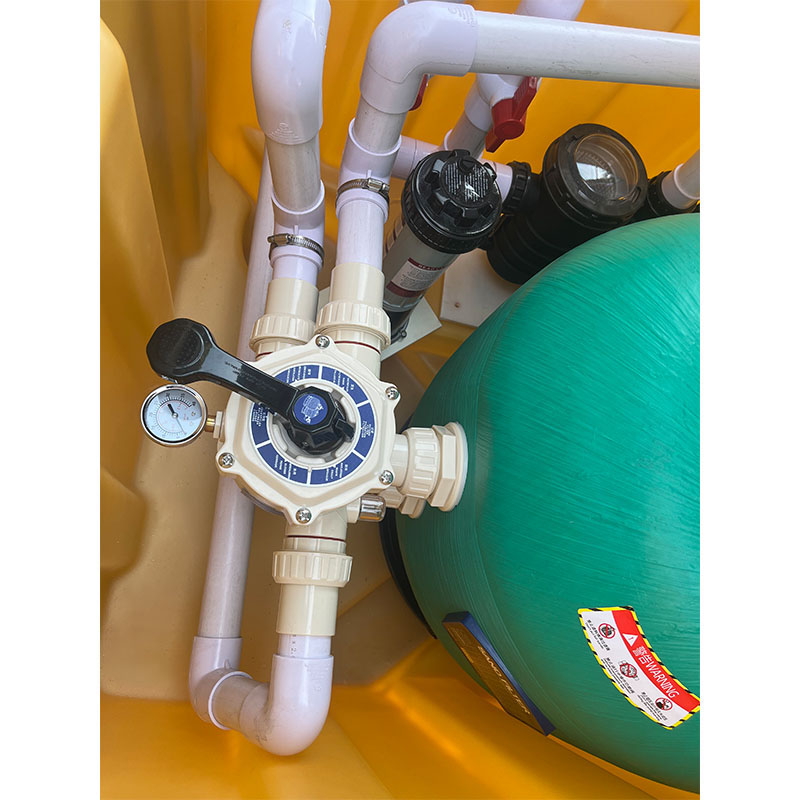

Model Type Filter method Power Flow Configuration size and introduction C-18(Regular) Buried Sand Filter 1.1KW 18m³/h PE shell box (acrylic cover); 1250×1070×950mm; 1.5HP/220V water pump; 650 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 4 valves. C-18(solenoid valve type) Buried Sand Filter 1.1KW 18m³/h PE shell box (acrylic cover); 1250×1070×950mm; 1.5HP/220V water pump; 650 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 4 valves. C-25(Regular) Buried Sand Filter 1.5KW 25m²/h PE shell box (acrylic cover); 1530×1380×1050mm; 2.0HP/220V water pump; 800 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 3 valves. C-25(solenoid valve type) Buried Sand Filter 1.5KW 25m²/h PE shell box (acrylic cover); 1530×1380×1050mm; 2.0HP/220V water pump; 800 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 3 valves. C-25T(Regular) Buried Sand Filter 1.5KW 2.2KW 25m³/h PE shell box (acrylic cover); 1530×1380×1050mm; 2.0HP/220V water pump; 800 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 4 valves; 3.0HP/220V massage water pump. C-30(Regular) Buried Sand Filter 2.2KW 30m³/h PE shell box (acrylic cover); 1530×1380×1050mm; 3.0HP/220V water pump; 900 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 4 valves. C-30(solenoid valve type) Buried Sand Filter 2.2KW 30m³/h PE shell box (acrylic cover); 1530×1380×1050mm; 3.0HP/220V water pump; 900 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 4 valves. C-36(Regular) Buried Paper core 2.2KW 36m³/h PE shell box (acrylic cover); 1200×1070×950mm; 3.0HP/220V water pump; paper filter; dosing device; junction box; leakage switch.

Model	Type	Filter method	Power	Flow	Configuration size and introduction
C-18(Regular)	Buried	Sand Filter	1.1KW	18m³/h	PE shell box (acrylic cover); 1250×1070×950mm; 1.5HP/220V water pump; 650 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 4 valves.
C-18(solenoid valve type)	Buried	Sand Filter	1.1KW	18m³/h	PE shell box (acrylic cover); 1250×1070×950mm; 1.5HP/220V water pump; 650 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 4 valves.
C-25(Regular)	Buried	Sand Filter	1.5KW	25m²/h	PE shell box (acrylic cover); 1530×1380×1050mm; 2.0HP/220V water pump; 800 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 3 valves.
C-25(solenoid valve type)	Buried	Sand Filter	1.5KW	25m²/h	PE shell box (acrylic cover); 1530×1380×1050mm; 2.0HP/220V water pump; 800 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 3 valves.
C-25T(Regular)	Buried	Sand Filter	1.5KW 2.2KW	25m³/h	PE shell box (acrylic cover); 1530×1380×1050mm; 2.0HP/220V water pump; 800 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 4 valves; 3.0HP/220V massage water pump.
C-30(Regular)	Buried	Sand Filter	2.2KW	30m³/h	PE shell box (acrylic cover); 1530×1380×1050mm; 3.0HP/220V water pump; 900 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 4 valves.
C-30(solenoid valve type)	Buried	Sand Filter	2.2KW	30m³/h	PE shell box (acrylic cover); 1530×1380×1050mm; 3.0HP/220V water pump; 900 side water filter sand tank; six-position multi-function valve; dosing device; junction box; 4 valves.
C-36(Regular)	Buried	Paper core	2.2KW	36m³/h	PE shell box (acrylic cover); 1200×1070×950mm; 3.0HP/220V water pump; paper filter; dosing device; junction box; leakage switch.
